XH-E08V ARP病毒+網路剪刀手防護專用機
金屬鐵殼,無需風扇,散熱度依然100%不熱當,晶片內含特殊電源穩定偵測系統,遇到瞬間跳電會自動作穩定偵測重新開機,不須手動關開機,體積15.9 x 8.5 x 2.5 公分,適合放入電信箱或任何天花板完全不佔空間,外置電源12V/1A,省電設計.省心,省錢,又省力.搭配Qno俠諾PPPoE Server功能使用,管理防護一次到位,完全不用在困惱宿舍網路問題.
支援網路線自動偵測連接:
不管網路線是平行線還是交叉線,一接上就自動幫忙轉通
VLan 功能(端口式) :

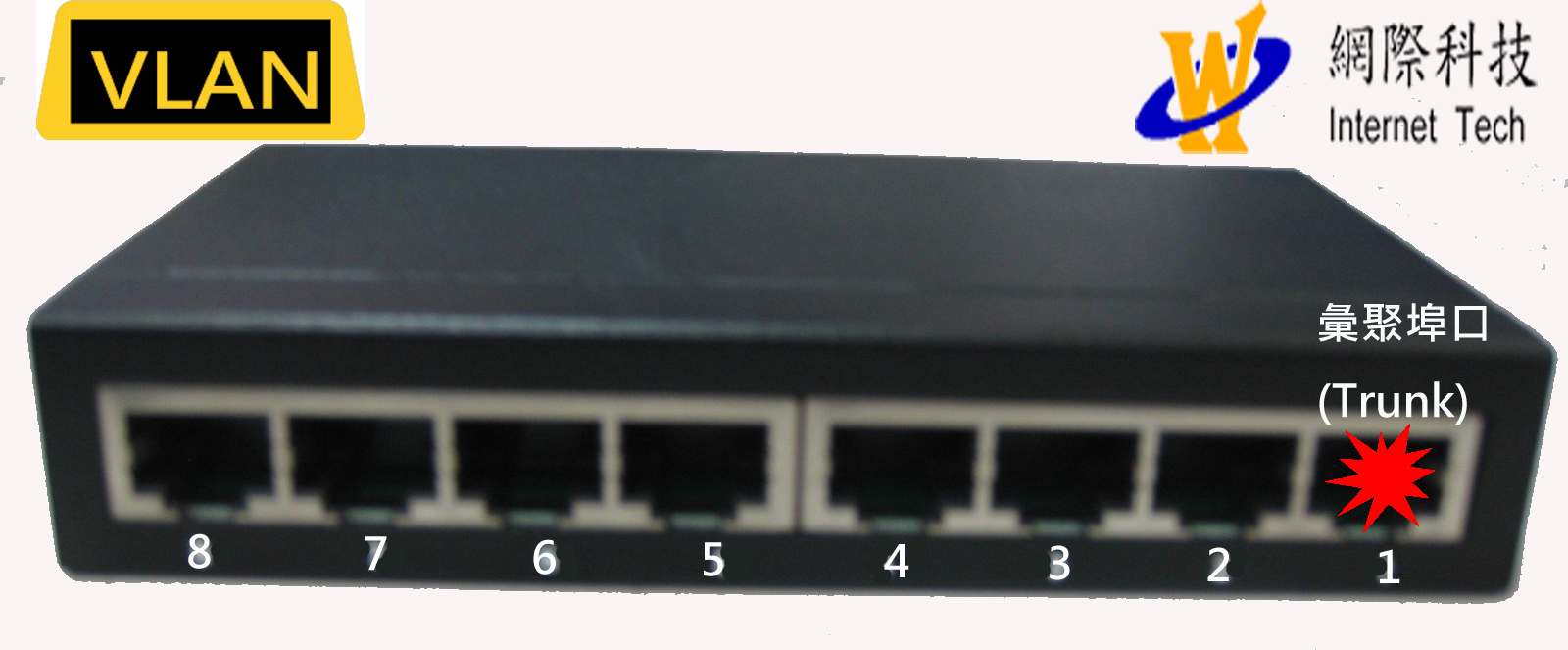

LAN Port總端口數8個,其中LAN Port 1為流量總出口,直接接在頻寬管理器或主交換機.
LAN Port 2~8可直接接到每一個房客的房間.讓每一個用戶都是獨立使用,不會看到彼此的電腦保有每台電腦的私密性,當遇到其它房客電腦中毒也不會被其干擾影響,讓安全隱私更有保障.
交換機晶片效能:
本交換機晶片採用高效能瑞昱晶片,其每個Port都可以支援到10/100M全雙工效能,在全雙工模式下,每個LAN Port都可以高達200Mbps效能,讓宿網不阻塞。
轉發方式:
支援封包自我檢查功能,當封包進入交換機後會做錯誤檢查,當發現有錯誤的封包會進行丟棄,增加網路傳輸效能。
XH-E08V is 8-port 10M/100M SOHO Fast Ethernet Switch that is designed for small or medium network environment to strengthen its network connection. This product is compact in size, making it ideal for SOHO users with limited space. It is a superb choice for expanding your network.
Auto-MDI/MDI-X
Every port can automatically sense your type of cable, so there is no need for crossover cables whether you are connecting this switch to another switch or to a computer.
VLan Features(Port-based)
Totel VLAN group :7
VLAN 1(Port 1,2)
VLAN 2(Port 1,3)
VLAN 3(Port 1,4)
.
.
.
VLAN 7(Port 1,8)
Auto-Negotiation
Every port can automatically sense if the connected network devices are running at 10Mbps or 100Mbps and Half/Full-Duplex mode, and adjust accordingly.
Non-Blocking
This switch receives and forwards traffic seamlessly with its non-blocking wire-speed. Every port simultaneously supports up to 200Mbps of bandwidth in full-duplex mode. This feature provides full wire speed to the connected devices and allows you to run a smooth network.
Store and Forward
By this function, this switch can maximize network performance while minimizing the propagation of bad network packets.
規格
|
Standard
|
IEEE 802.3; IEEE 802.3u and IEEE802.3X
|
|
Interface
|
8* 10/100 Mbps Nway RJ45 ports
|
|
NWay Protocol Support
|
Network speed: 10/100 Mbps
|
|
Duplex mode
|
Full and Half
|
|
Buffer Memory
|
768K bits Memory for whole system
|
|
Filtering/Forwarding Rate
|
10Mbps: 14,880pps/14,880pps 100Mbps: 148,800pps/148,800pps
|
|
Emission
|
FCC Class B, CE VCCI
|
|
LED indicators
|
System: Power
Port: Link/Act
|
|
Operating Temperature
|
0°C ~ 40°C (32°~104°F)
|
|
Operating Humidity
|
10% ~ 90% (non-condensing)
|
|
Dimension
|
159x85x25 mm
|
|
Power Supply
|
External Power 5V0.6A
|
|
